Description

  • AX20.001.010.A.SP
  • Square Post – Floor Mounted
  • 40 mm x 40 mm Square – 2mm wall thickness
  • 1000 mm tall ( 39 – 3/8 in. )
  • Floor Mount with Flange Cover – 100 mm base ( 3 – 15/16″ in.) – Requires two screws Part # AX00.091.800.A.SP
  • Wall Mount Option Requires Screws
    • Wood Screw – Part # AX00.091.900.A.SP
    • Metal Screw – Part # AX00.091.905.A.SP
  • Core Mount requires adhesives for Installation
    • For mounting into structure – use 2 part epoxy EPC-410
    • For attaching tubing to core mount Installation uses our adhesive – Part # AX00.100.525

Mounting Methods using Attached Flange

  • Standard Floor Mount – Screws into the floor with the already attached bracket and is covered with the flange.

Mounting Methods using no Flange – Recommended to purchase the 42.4 mm handrail tube and use that as the posts. This saves you money overall as you don’t have to purchase the already welded flange.

  • Level Floor Mount – No Flange – Purchase 40×40 mm square handrail tube. Purchase the Core Mount.
  • Angled Floor Mount – Purchase 40×40 mm square handrail tube. Purchase the Core Mount and Angled Flange Cover.

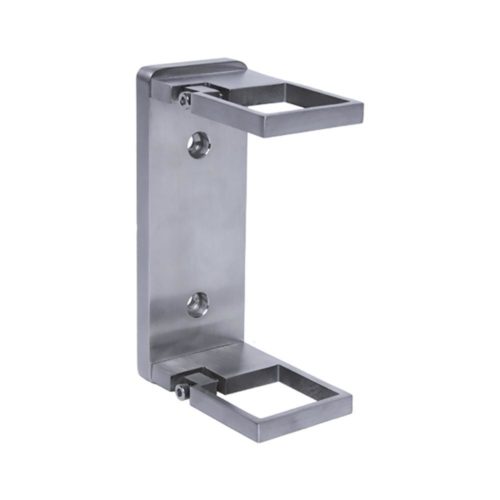

  • Side / Wall Mount – Purchase 40×40 mm square handrail tube. Purchase the Wall Mount kit. Also purchase flat or round end caps for the bottom of the post.

Additional information

Part

Core Mount, Flange Cover, Square Post, Square Post Angled Flange Cover, Wall Mount
